PRODUCTS
PVC THUNDER HOSE, CANVAS HOSE AND FLAT HOSE

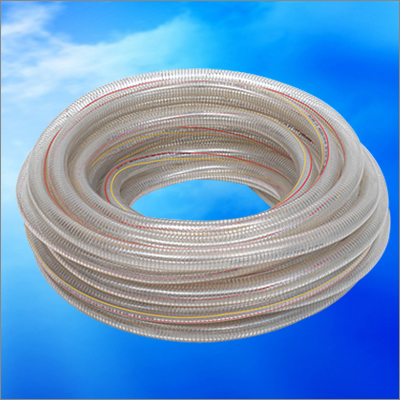

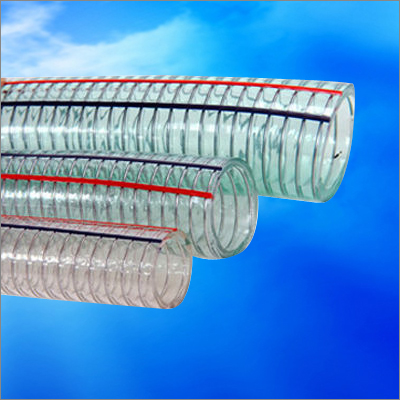

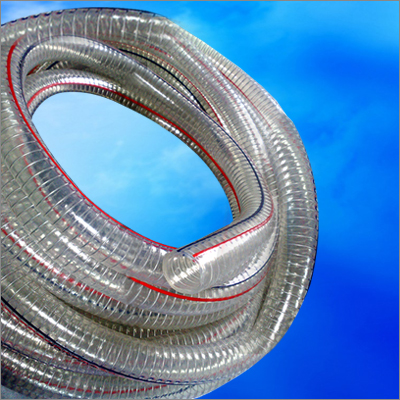

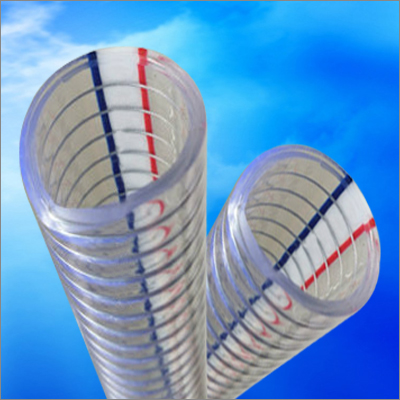

PVC THUNDER HOSE
PVC Flexible Non-Toxic and Food Grade Thunder Hoses are designed incorporating a rigid PVC spiral as an integral part of the soft PVC wall. The anti-shock rigid spiral imparts superior crush resistance to the hose. They are manufactured on our state of the art plant and machinery using specially formulated non-toxic PVC compounds.
We have developed the Non-Toxic Suction Hose for specific properties and applications of suction and delivery of mineral water and foodstuff.
FEATURES
The perfect reinforcement of Rigid PVC with Soft PVC gives it both, strength and flexibility.
It is tough, light, easy to carry, handle and clean thus increasing working efficiency.
Has high resistance to crushing and kinking thereby more durable and long lastin.
Excellent resistance to high pressure and can withstand vacuum also.
Smooth inside surface helps in reducing the frictional resistance resulting in smooth and quick conveyance of material, thereby increasing the flow volume saving electric energy of pumps and engines.
Easy to install without joints since hoses available in 30 meters length. Elimination of joints further keeps the inner surface free of obstruction.
It is transparent to see the conveyed material.
Resistant to atmospherical agents and to most chemicals.
Weather Resistant
Inside Dia. |
Wall Thickness (mm) |
Working Pressure (Bar) @27oC |
Bursting Pressure (Bar) @27oC |
Vaccum MH2O |
Standard Length |
|
MM |
Inch |
|||||
8 |
5/16 |
2.5 |
8 |
24 |
10 |
100 |
9 |
3/8 |
3 |
8 |
24 |
10 |
100 |
10 |
3/8 |
3 |
8 |
24 |
10 |
100 |
12 |
1/2 |
3 |
6 |
18 |
9.5 |
100 |
16 |
5/8 |
3 |
6 |
18 |
9.5 |
100 |
19 |
3/4 |
3.5 |
6 |
18 |
9.5 |
50 |
25 |
1 |
3.5 |
6 |
18 |
8.5 |
50 |
32 |
1.1/4 |
4 |
5 |
16 |
8.5 |
50 |
38 |
1.1/2 |
4.5 |
5 |
16 |
8.5 |
40 |
45 |
1.3/4 |
5 |
5 |
16 |
8.0 |
50 |
50 |
2 |
5.5 |
5 |
16 |
8.0 |
30 |
64 |
2.1/2 |
7 |
4 |
14 |
8.0 |
20 |
75 |
3 |
7.5 |
4 |
14 |
7.0 |
20 |
100 |
4 |
8 |
4 |
14 |
7.0 |
15 |
125 |
5 |
8 |
4 |
12 |
5.0 |
15 |
150 |
6 |
8 |
4 |
12 |
4.0 |
15 |
200 |
8 |
10 |
4 |
12 |
4.0 |
10 |
SAILENT FEATURES
1. Vaccum Resistant.
2. Made From Food Grade Non -Toxic Ingredients, suitable for transport of food.
3. Glass like clarity with smooth inner & outer surfaces provide outstanding visual flow characteristics.
4. Very flexible & does not kink when bent from a small radius.
5. Resistant to atmospherical agents.

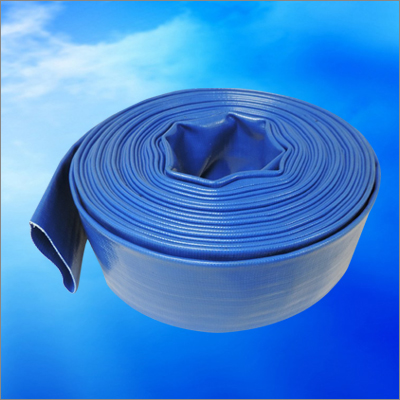

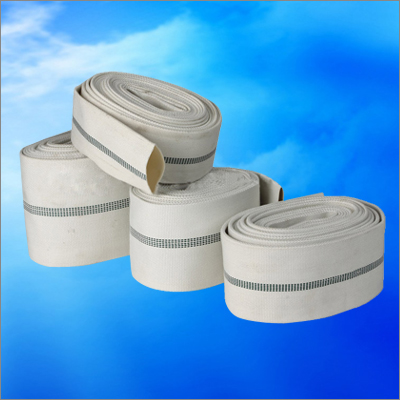

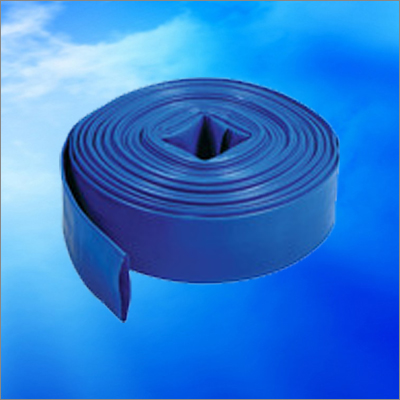

CANVAS HOSE
Canvas Hose Pipe offeredfind functionality for firefighting through delivering water supply to the affected areas. These Canvas hoses feature unique construction where these can be wrapped up flat in empty state in comparison to other pipe types that are generally cylindrical in shape and consume more space. This feature also makes these pipes easy to store as well as less bulky in usage, thus making them easy to move around.
FEATURES :
• Available in different categories depending on their application and composition
• Versatile and highly hoses
• Can be laid flat when idle thus providing vital space saving
• Hoses reinforced by polyester yarns to withstand higher working pressure
Sizes: 40 mm to 150 mm
