PRODUCTS

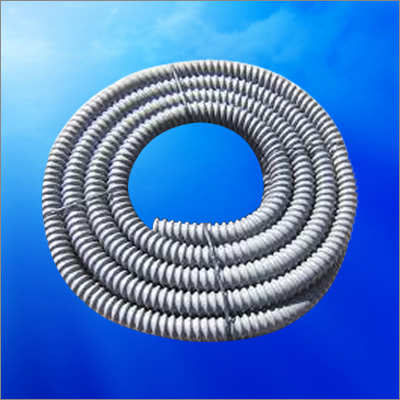

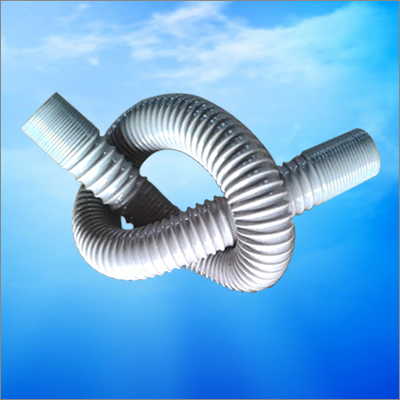

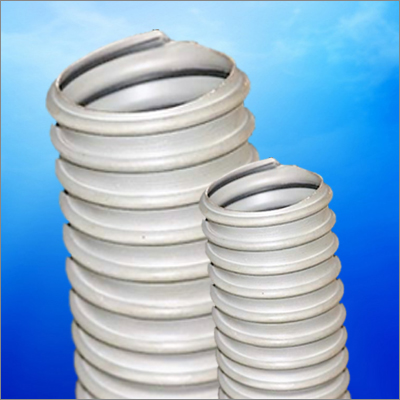

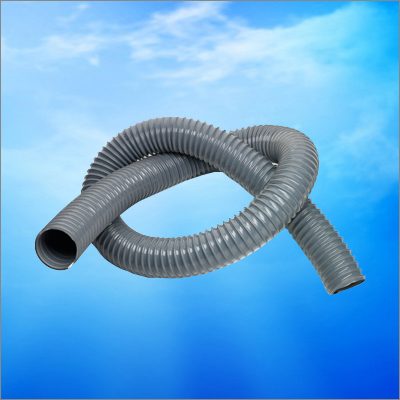

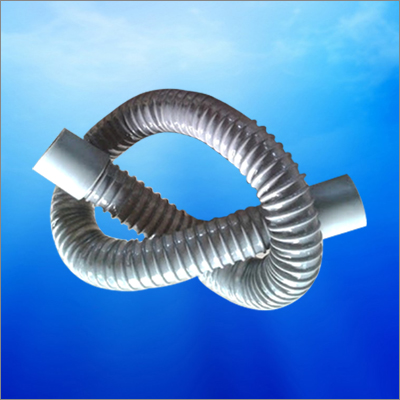

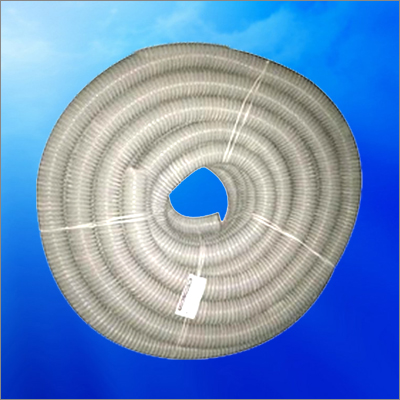

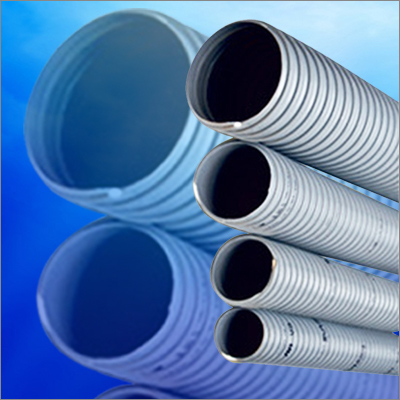

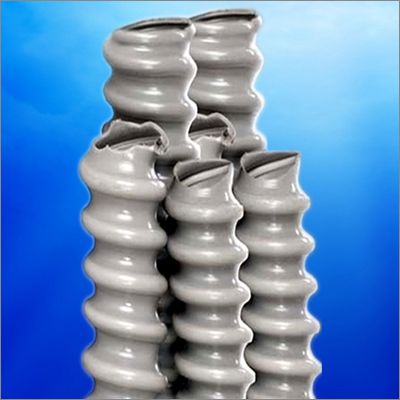

PVC DUCT HOSE
STRUCTURE :
Our Duct hose has a specially compounded rigid PVC reinforcement which is helically wound and inseparably fused to the soft inner walls. By its unique construction, ducting results in a thin, very smooth wall, being almost completely protected from any possible crushing.
FEATURES :
Light weight & flexible : The perfect reinforcement of rigid PVC with soft PVC gives it both, strength and flexibility. It is tough, light so easy to carry and handle thus increases working efficiency.
Resistance : Has strong resistance to the most of the chemicals, Acids and alkalies and also abrasion resistant with the aid of rigid outer reinforcement which can effectively handle dirt, fiber chip etc.
Smooth flow : Smooth inside surface helps in reducing the frictional resistance resulting in smooth & quick conveyance of material, thereby increasing the flow volume saving electric energy of equipment.
Economical to Install : It saves installation time and money. It is easily fitted by securing with a band of wire. Any suitable end fittings can be cut in to desired lengths instantly and installed.
APPLICATIONS :
• Cold or Warm air installations of various kinds.
• Removing fumes from factories, fuel tanks and underground installations.
• Dust collection from various machines.
• Discharge of welding gas at the welding job site.
• Air cleaner hose for vehicles and heavy equipments.
• For dung cart.
• Conveying of granules or fine particles of raw material in processing industries.
• In domestic vacuum cleaning equipments.
• In washing machines.
• For carding machines and draw forms in Textile Industry.
• Transportation of wheat and other cereals in the course of processing.
SPECIFICATIONS :
Inches. |
mm |
ID mm |
OD mm |
Bending Redius mm |
Standard Lengths (mtrs.) |
5/8 |
16 |
16.0 |
22.00 |
22 |
30 |
3/4 |
22 |
21.0 |
28.60 |
35 |
30 |
1 |
25 |
25.4 |
32.10 |
45 |
30 |
11/4 |
30 |
31.8 |
38.60 |
50 |
30 |
11/2 |
40 |
38.0 |
45.00 |
55 |
30 |
2 |
50 |
50.8 |
57.20 |
65 |
30 |
21/2 |
65 |
63.5 |
71.50 |
75 |
30 |
3 |
75 |
76.2 |
83.50 |
95 |
30 |
4 |
100 |
101.2 |
108.90 |
125 |
30 |
5 |
125 |
127.0 |
135.20 |
140 |
15 |
6 |
150 |
152.4 |
161.10 |
205 |
15 |
8 |
200 |
204.0 |
214.40 |
270 |
15 |
10 |
250 |
254.0 |
265.00 |
370 |
10 |
12 |
300 |
305.0 |
320.00 |
370 |
10 |
60mm, 80mm, 90mm, 110mm, 140mm,160mm, 225mm sizes are also available on request

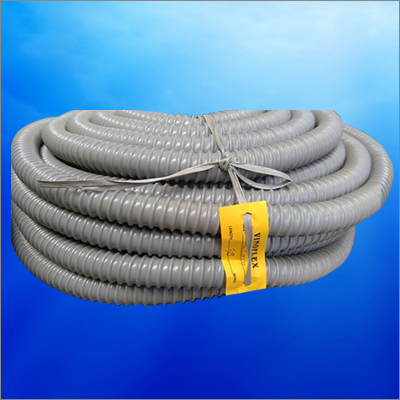

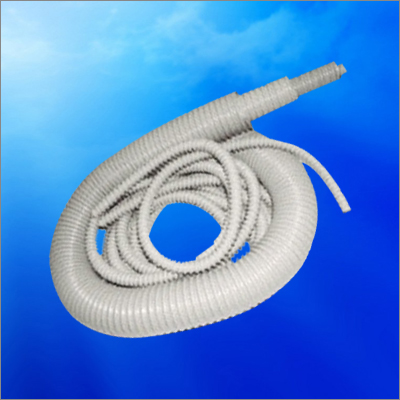

PVC SWR DUCT HOSE
Steel Wire Reinforced (SWR) Flexible Pipes
High Tensile PVC covered steel wire hose are thin walled and light in weight and are very flexible for industrial purposes. Sizes produced are10 mm ID to 200 mm ID.
Our hoses have a reinforcement of PVC insulated
Super Flexibility
Our Hoses are highly flexible and will flex on it own diameter without deformation or any reduction in its cross section. This special feature reduces installation time in the most unapproachable area of application.
Electrical Resistance
Our Hoses have excellent dielectric properties. There is no danger of short circuit taking place due to steel wire, as it is fully insulated with pvc. There are no other harmful effects due to spring steel wire, when used near panels. Infact, it is a kind of an armoring and protects the cable inside.
• PVC SWR Duct Hoses are available in sizes ranging from inside diameter 20 mm to 315 mm.
• Standard colour is Grey. Can be manufactured in other colours against specific order.
Normal Size |
Wall Thichness |
Bending Radius |
Standard Length |
|
mm |
Inch |
(mm) |
(mm) |
(meter) |
20 |
1 3 /4 |
1.1 |
30 |
30 |
25 |
1 |
1.1 |
30 |
30 |
32 |
1 1 /4 |
1.1 |
33 |
30 |
38 |
1 1 /2 |
1.1 |
35 |
30 |
50 |
2 |
1.2 |
50 |
30 |
63 |
2 1 /2 |
1.2 |
60 |
30 |
75 |
3 |
1.3 |
75 |
30 |
100 |
4 |
1.3 |
90 |
30 |
125 |
5 |
1.3 |
120 |
15 |
150 |
6 |
1.3 |
150 |
15 |
200 |
8 |
1.5 |
150 |
10 |
250 |
10 |
1.5 |
250 |
10 |
300 |
12 |
1.5 |
250 |
10 |
315 |
12 1 /2 |
1.5 |
250 |
10 |
