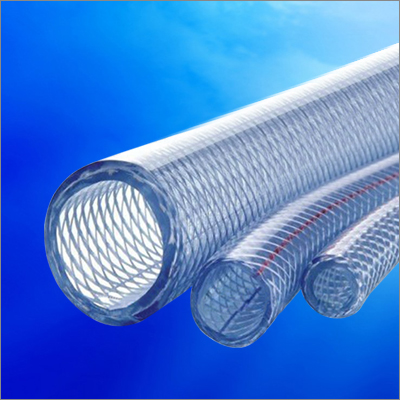

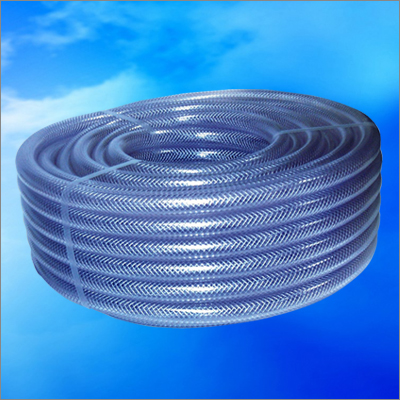

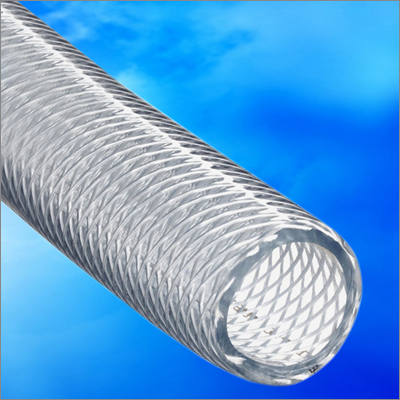

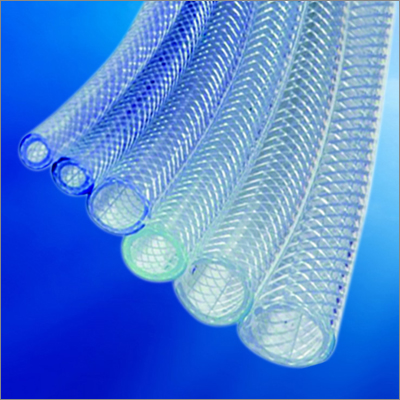

PVC BRAIDED HOSES
DESCRIPTION :
PVC Braided hose is reinforced with high tenacity yarn to meet the pressure requirements for general construction work, Road building, Tunneling metallic and Non metallic ore mines, in structural shops with chipping, Grinding and revetting application service stations for tyre inflation, for pneumatic tools use in Industries and for Heavy duty suction and delivery of water and chemicals.
SPECIFICATIONS :
Size mm |
Wall Thickness mm |
Working Pressure (at30°ckg/CM2) |
Standard Lengths (mtrs.) |
5 |
2.5 |
15 |
50/100/200 |
6 |
3.0 |
25 |
50/100 |
8 |
3.0 |
25 |
50/100 |
10 |
3.5 |
25 |
50/100 |
12 |
3.5 |
20 |
50/100 |
15 |
3.5 |
20 |
30/50/100 |
20 |
4.0 |
20 |
30/50/100/2000 |
25 |
4.8 |
15 |
30/50/100 |
31 |
4.8 |
15 |
30/50/100 |
40 |
5.0 |
15 |
30/50/100 |
45 |
5.5 |
10 |
30/50/100 |
50 |
6.0 |
10 |
30/50/100 |
58 |
6.5 |
8 |
30/50 |
63 |
7.0 |
8 |
30/50 |
75 |
8.0 |
6 |
20/30 |
PVC CAR WASHING HOSE :
CONSTRUCTON & APPLICATIONS : Car-Washing hose are double braided & made of 100% oil resistant PVC Compound & braided with extra strong fine yarn to withstand working pressure upto 30/40 Kg/CM2.
The outer surface of our hose is totally abrasion resistant which is suitable for washing vehicles in garages, service stations to withstand unavoidable oil, grease contamination.
SPECIFICATIONS :
Size mm |
Wall Thickness mm |
Working Pressure ( at 30° c kg/CM2) |
Standard Lengths (mtrs.) |
10 |
5.0 |
40 |
60/100 |
12 |
5.5 |
30 |
60/100 |

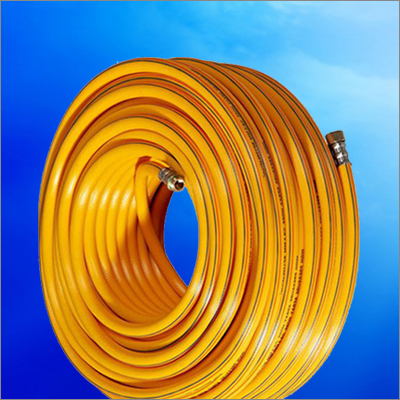

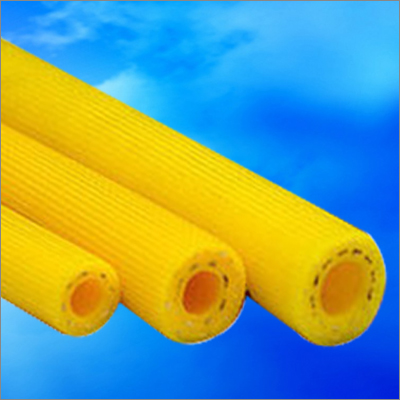

PVC SUPER SPRAY HOSE :
super spray pipes are specially designed for applications requiring high pressure. Meticulously selected high quality synthetic yarn is used. It is closely wound to offer great strength and better resistance to withstand higher working pressure. Its unique feature is its high pressure tensile capacity. Power spray has been widely accepted as an ideal replacement to rubber pipes. These pipes are light in weight and connect to the higher international standards.
APPLICATION :
Power spray pipes are recommended for high pressure spray for Agricultural pesticides, insecticides, weeding fungicides etc., It is also used for transportation of high pressure fluid in industries.
Power Spray Pipes - High Pressure Pipes for agricultural spraying machines.
Size: 8mm to 20 mm.
